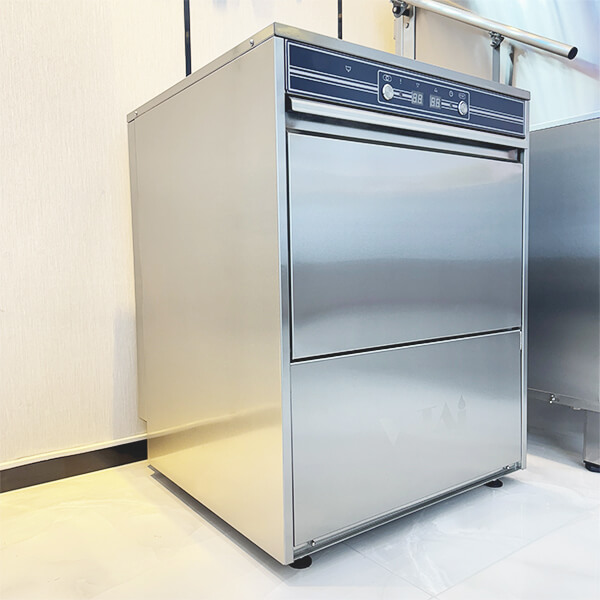

Undercounter & Bar Glasswashers
(Built-in Dispenser)
( Model: AE-U1D )
- Applicable places: bars with less than 100 people, coffee shops, small staff restaurants, fast food restaurants and other high-end places.
- Product function: washing bowls, plates, cups, trays, knives and forks and other tablewar.
- Washing capacity: 40-60 baskets/hour
- Origin: China
Features
- Eliminates external wiring and wall-mounting requirements.
- Streamlines operation via automated preset programs.
- Integrated space-saving design for compact layouts.
- Modular components enable quick repairs and reduced downtime.
- Mobility for outdoor service with wheeled cart compatibility.
- Durable enclosure protects against environmental hazards.
- Effortless control with only two operation buttons, ensuring user-friendly experience.
- Offers two adaptable washing cycles to handle various dishwashing needs.
- Features a default 10-15 second rinsing cycle, guaranteeing thorough cleaning.
- Equipped with a micro switch that automatically halts operation when the door is opened, prioritizing safety.
- Crafted from SUS304 stainless steel, providing exceptional durability and a rat-proof design for extended lifespan.
Specifications
| Model: | AE-U1D |
| External Dimensions(mm): | 630(D)*600(W)*790(H) |
| Rack Size | 500*500 mm |
| Max Loading Height | 310 mm |
| Washing Cycle Time | 90 – 180 sec |
| Capacity | 30 racks/hr |
| Tank Capacity | 33 L |
| Boiler Capacity | 5 L |
| Wash Tank Heater | 3 kW |
| Booster Heater | 4.5 kW |
| Wash Pump Power | 0.6 kW |
| Total Power | 8.1 kW |
| Power Supply | 380V/50Hz/3ph (Optional: 220V/50Hz/1ph) |
| Inlet Water Pressure | 0.5 – 2.0 kg |
| Max Temp of Inlet Water | 50℃ |
| Max Water Consumption/Hr | 100 L |
| Water Consumption Per Cycle | 2.5 L |
| Water Inlet(in) | 3/4 “ |
| Drain Outlet (mm) | 40 mm |
| Net Weight | 66kg |
